Features:
- Class-leading 9.5 mph top speed and 22 mile range
- "High/Low" switch for instant speed control

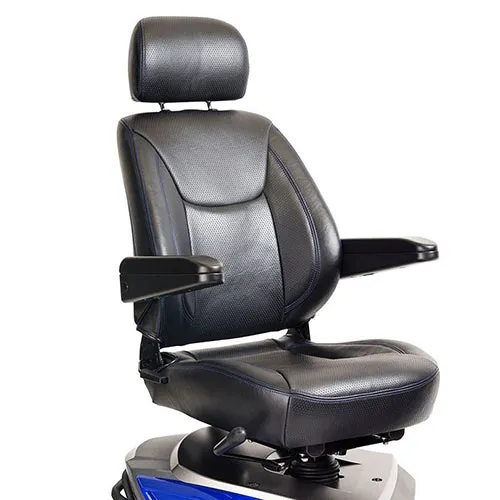

- The Sport Style Captain's Seat in 18" width and depth features a reclining, fold-down backrest, height adjustability, swivels, and adjusts forward or backward on auto-style seat slides (Figure A)
- Padded armrests feature easy turn cylinders for angle adjustment

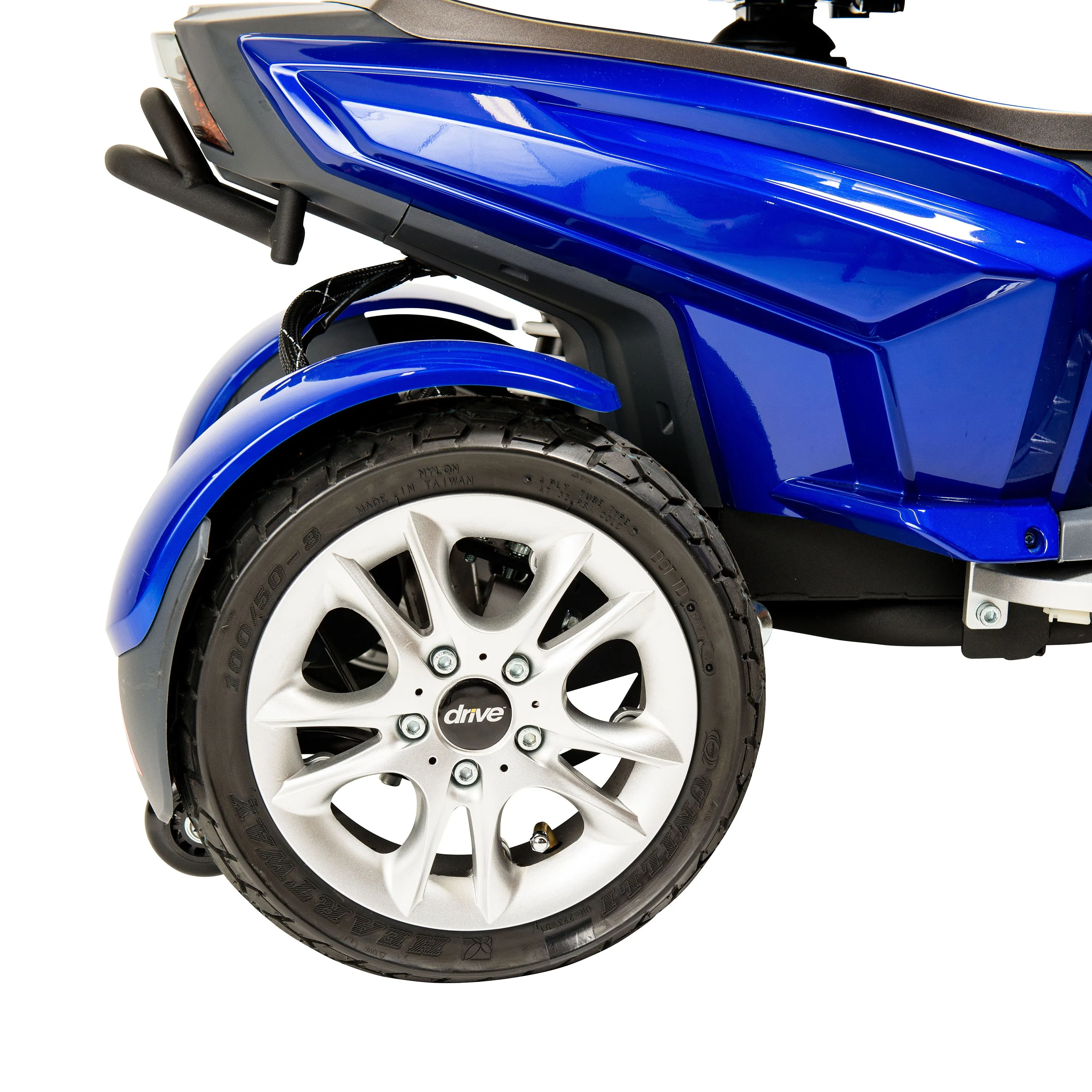

- Large, air-filled, low-profile tires on Blade style alloy rims (Figure D)
- Full suspension on articulating frame
- One-touch, infinite tiller angle adjustment (Figure C)
- Convenient cup holders built into the tiller (Figure C)
- Ergonomic delta hand controls
- Efficient, extra bright LED lighting
- State-of-the-art control panel with backlighting(Figure B)
- Side marker lights, hazard lights, turn signals and reflectors for superb visibility
- Dual rear view mirrors
- Positioning belt included
- Anti-tip wheels and Free-Wheel mode standard
Specification:
Weight Capacity | 325 lbs. |
---|---|
Top Speed | 9.5 mph |
Maximum Range | 22 miles |
Turning Radius | 47.25" |
Climbing Angle | 6° |
Ground Clearance | 3.95" |
Dimensions | 52" (L) x 26.5" (W) |
Floor-to-Seat-Height | 28" - 31.5" |
Seat Type | Sport Style Captain's |
Controller | PG S DRIVE 120A |
Motors | 24V x 500W x 5100 RPM |
Batteries (pair) | 12V x 50AH |
Charger | 5A Offboard |
Brakes | Electromagnetic |
Front Wheels | 11" x 3.5" |
Rear Wheels | 11" x 4" |
Base Weight | 133 lbs. |
Battery Weight (pair) | 66 lbs. |
Seat Weight | 55 lbs. |
Total Weight | 254 lbs. |
Warranty on Frame | Lifetime |
Warranty on Electronic Controller | 24 Months |
Warranty on Drive Train Components | 24 Months |
Warranty on Batteries | 6 months |
